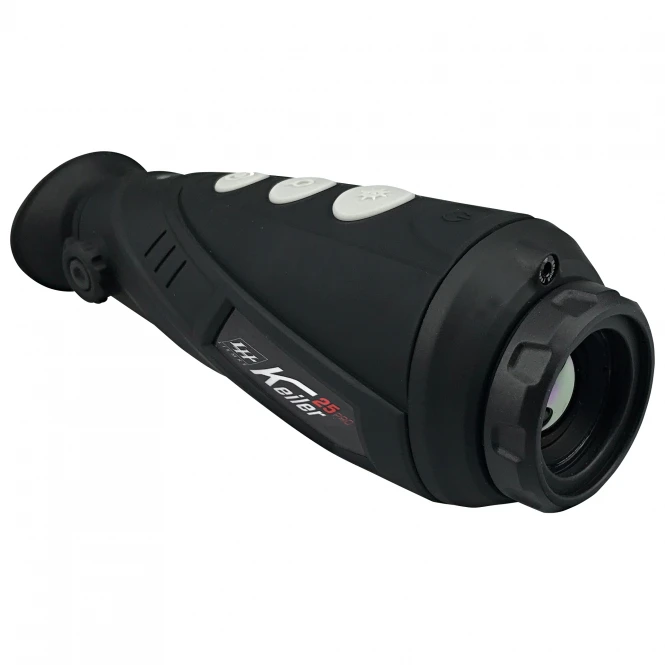

Liemke Thermal Imaging Optic Keiler 25 Pro

The design and features allow a wide range of application possibilities. Heat sources can be displayed in various viewer color modes and digitally magnified if required. Image data can be transmitted via cable and, depending on the version, transferred live to an Android or iOS end device via WiFi function and recorded. The game camera is IP66 certified and thus protected against dust and rain. Equipped with a powerful VOx detector, 17 µm pixel pitch and LCOS display. The internal battery allows a continuous operation time of at least 4 hours, additionally an external USB power source can be operated as well as charged. The frame rate is 50 Hz. The scope of delivery includes: Thermal imaging optics, lens cover, operating manual (German), wrist strap, charging cable and video cable.

Objective lens (FOV): 25 mm, fixed focus
Detector: 640×510 VOx Ceramic Detector
Field of view: 17×13
Magnification: 1.5 optical/2-4x digital
Picture & Video: Video output
Weight g: 400
Detection m: 1.250
Dimensions: 18.1 x 6.1 x 7.1 cm

• A multitude of possible applications
• With hand strap, charging cable and video cable
• Frame rate is 50 Hz
• Certified to IP66
